Securing A JakartaEE REST API With OIDC

This article shows how to build, containerize, and test a secure Jakarta EE 10 REST API using Open Liberty as both OpenID Connect (OIDC) provider and client. All container operations (build, run, stop, remove) are automated with Maven plugins in the integration-test module. You’ll use Java 21, CDI constructor injection, JPA, Flyway, Podman, and comprehensive unit/integration tests. All code and configuration are included and ready to use.

What is OIDC? Why Use It?

OpenID Connect (OIDC) is a modern authentication protocol built on top of OAuth 2.0, standardized in 2014 by the OpenID Foundation. It provides a simple, secure, and interoperable way for applications to authenticate users via a trusted identity provider. OIDC adds an identity layer to OAuth 2.0, introducing the concept of an ID token (a signed JWT) that securely conveys user identity.

OIDC vs. Other Protocols

Protocol	Purpose	Strengths	Limitations
OpenID Connect	AuthN + AuthZ	Simple, JWT-based, RESTful, SSO, supported by all major IdPs	Requires HTTPS, newer
OAuth 2.0	Authorization	Widely adopted, flexible	No authentication, no ID tokens
SAML 2.0	AuthN + AuthZ	Mature, enterprise SSO	XML-based, complex, not RESTful
OpenID 2.0	Authentication	Early SSO	Obsolete, replaced by OIDC

OIDC Benefits:

RESTful and developer-friendly (JSON, JWT)
Secure (uses proven cryptography, JWT, HTTPS)
Interoperable (works with Google, Microsoft, etc.)
Enables SSO and delegated login
Simpler than SAML, more modern than OpenID 2.0

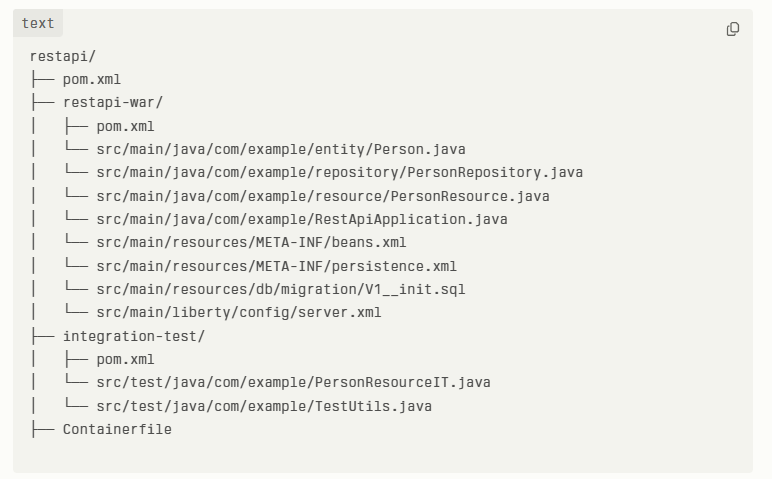

Project Structure

Step 1: Create the Project in IntelliJ

Description:
Use IntelliJ’s “New Project” wizard to create a Maven parent project, then add two modules:

restapi-war (packaging: war)
integration-test (packaging: jar)

Create the directory structure as above.

Step 2: Parent and Child POMs

restapi/pom.xml (parent)

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.example</groupId>
  <artifactId>restapi</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>pom</packaging>
  <modules>
    <module>restapi-war</module>
    <module>integration-test</module>
  </modules>
  <properties>
    <maven.compiler.source>21</maven.compiler.source>
    <maven.compiler.target>21</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <failIfNoTests>true</failIfNoTests>
  </properties>
  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>jakarta.platform</groupId>
        <artifactId>jakarta.jakartaee-api</artifactId>
        <version>10.0.0</version>
        <scope>provided</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>
</project>

<project xmlns="http://maven.apache.org/POM/4.0.0"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0

http://maven.apache.org/xsd/maven-4.0.0.xsd">

<groupId>com.example</groupId>

<artifactId>restapi</artifactId>

<version>1.0-SNAPSHOT</version>

<module>restapi-war</module>

<module>integration-test</module>

</modules>

<maven.compiler.source>21</maven.compiler.source>

<maven.compiler.target>21</maven.compiler.target>

<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

</properties>

<groupId>jakarta.platform</groupId>

<artifactId>jakarta.jakartaee-api</artifactId>

<scope>provided</scope>

</dependency>

</dependencies>

</dependencyManagement>

</project>

restapi-war/pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <groupId>com.example</groupId>
    <artifactId>restapi</artifactId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <artifactId>restapi-war</artifactId>
  <packaging>war</packaging>
  <dependencies>
    <dependency>
      <groupId>jakarta.platform</groupId>
      <artifactId>jakarta.jakartaee-api</artifactId>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.flywaydb</groupId>
      <artifactId>flyway-core</artifactId>
      <version>10.0.0</version>
    </dependency>
    <dependency>
      <groupId>org.postgresql</groupId>
      <artifactId>postgresql</artifactId>
      <version>42.7.1</version>
    </dependency>
    <!-- Unit testing dependencies -->
    <dependency>
      <groupId>org.mockito</groupId>
      <artifactId>mockito-core</artifactId>
      <version>5.2.0</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.junit.jupiter</groupId>
      <artifactId>junit-jupiter</artifactId>
      <version>5.10.0</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>com.opentable.components</groupId>
      <artifactId>otj-pg-embedded</artifactId>
      <version>1.0.0</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-war-plugin</artifactId>
        <version>3.4.0</version>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-surefire-plugin</artifactId>
        <version>3.2.5</version>
      </plugin>
    </plugins>
  </build>
</project>

<project xmlns="http://maven.apache.org/POM/4.0.0"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0

http://maven.apache.org/xsd/maven-4.0.0.xsd">

<groupId>com.example</groupId>

<artifactId>restapi</artifactId>

<version>1.0-SNAPSHOT</version>

</parent>

<artifactId>restapi-war</artifactId>

<groupId>jakarta.platform</groupId>

<artifactId>jakarta.jakartaee-api</artifactId>

<scope>provided</scope>

</dependency>

<groupId>org.flywaydb</groupId>

<artifactId>flyway-core</artifactId>

</dependency>

<groupId>org.postgresql</groupId>

<artifactId>postgresql</artifactId>

</dependency>

<groupId>org.mockito</groupId>

<artifactId>mockito-core</artifactId>

</dependency>

<groupId>org.junit.jupiter</groupId>

<artifactId>junit-jupiter</artifactId>

</dependency>

<groupId>com.opentable.components</groupId>

<artifactId>otj-pg-embedded</artifactId>

</dependency>

</dependencies>

<build>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-war-plugin</artifactId>

</plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-surefire-plugin</artifactId>

</plugin>

</plugins>

</build>

</project>

Step 3: Production Code

Person.java

package com.example.entity;

import jakarta.persistence.*;

@Entity
public class Person {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;

    public Person() {}

    public Person(Long id, String name) {
        this.id = id;
        this.name = name;
    }

    public Long getId() { return id; }
    public String getName() { return name; }
}

package com.example.entity;

import jakarta.persistence.*;

@Entity

public class Person {

@Id

@GeneratedValue(strategy = GenerationType.IDENTITY)

private Long id;

private String name;

public Person() {}

public Person(Long id, String name) {

this.id = id;

this.name = name;

}

public Long getId() { return id; }

public String getName() { return name; }

}

PersonRepository.java

package com.example.repository;

import com.example.entity.Person;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.persistence.EntityManager;
import java.util.List;

@ApplicationScoped
public class PersonRepository {
    private final EntityManager em;

    @Inject
    public PersonRepository(EntityManager em) {
        this.em = em;
    }

    public List<Person> findAll() {
        return em.createQuery("SELECT p FROM Person p", Person.class).getResultList();
    }

    public Person save(Person person) {
        em.persist(person);
        return person;
    }
}

package com.example.repository;

import com.example.entity.Person;

import jakarta.enterprise.context.ApplicationScoped;

import jakarta.inject.Inject;

import jakarta.persistence.EntityManager;

import java.util.List;

@ApplicationScoped

public class PersonRepository {

private final EntityManager em;

@Inject

public PersonRepository(EntityManager em) {

this.em = em;

}

public List<Person> findAll() {

return em.createQuery("SELECT p FROM Person p", Person.class).getResultList();

}

public Person save(Person person) {

em.persist(person);

return person;

}

PersonResource.java

package com.example.resource;

import com.example.entity.Person;
import com.example.repository.PersonRepository;
import jakarta.annotation.security.RolesAllowed;
import jakarta.enterprise.context.RequestScoped;
import jakarta.inject.Inject;
import jakarta.ws.rs.*;
import jakarta.ws.rs.core.MediaType;
import java.util.List;

@Path("/persons")
@Produces(MediaType.APPLICATION_JSON)
@RequestScoped
public class PersonResource {
    private final PersonRepository repository;

    @Inject
    public PersonResource(PersonRepository repository) {
        this.repository = repository;
    }

    @GET
    @RolesAllowed("user")
    public List<Person> getAll() {
        return repository.findAll();
    }
}

package com.example.resource;

import com.example.entity.Person;

import com.example.repository.PersonRepository;

import jakarta.annotation.security.RolesAllowed;

import jakarta.enterprise.context.RequestScoped;

import jakarta.inject.Inject;

import jakarta.ws.rs.*;

import jakarta.ws.rs.core.MediaType;

import java.util.List;

@Path("/persons")

@Produces(MediaType.APPLICATION_JSON)

@RequestScoped

public class PersonResource {

private final PersonRepository repository;

@Inject

public PersonResource(PersonRepository repository) {

this.repository = repository;

}

@GET

@RolesAllowed("user")

public List<Person> getAll() {

return repository.findAll();

}

RestApiApplication.java

package com.example;

import jakarta.ws.rs.ApplicationPath;
import jakarta.ws.rs.core.Application;

@ApplicationPath("/api")
public class RestApiApplication extends Application {}

package com.example;

import jakarta.ws.rs.ApplicationPath;

import jakarta.ws.rs.core.Application;

@ApplicationPath("/api")

public class RestApiApplication extends Application {}

Step 4: Flyway Migration Script

restapi-war/src/main/resources/db/migration/V1__init.sql:

CREATE TABLE person (
    id SERIAL PRIMARY KEY,
    name VARCHAR(255) NOT NULL
);

INSERT INTO person (name) VALUES ('Alice'), ('Bob');

CREATE TABLE person (

id SERIAL PRIMARY KEY,

name VARCHAR(255) NOT NULL

);

INSERT INTO person (name) VALUES ('Alice'), ('Bob');

Step 5: persistence.xml & beans.xml

restapi-war/src/main/resources/META-INF/persistence.xml:

<persistence xmlns="https://jakarta.ee/xml/ns/persistence"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="https://jakarta.ee/xml/ns/persistence https://jakarta.ee/xml/ns/persistence/persistence_3_0.xsd"
    version="3.0">
  <persistence-unit name="defaultPU" transaction-type="JTA">
    <jta-data-source>jdbc/postgres</jta-data-source>
    <properties>
      <property name="jakarta.persistence.schema-generation.database.action" value="none"/>
    </properties>
  </persistence-unit>
</persistence>

<persistence xmlns="https://jakarta.ee/xml/ns/persistence"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="https://jakarta.ee/xml/ns/persistence https://jakarta.ee/xml/ns/persistence/persistence_3_0.xsd"

version="3.0">

<persistence-unit name="defaultPU" transaction-type="JTA">

<jta-data-source>jdbc/postgres</jta-data-source>

</properties>

</persistence-unit>

</persistence>

beans.xml

<beans xmlns="https://jakarta.ee/xml/ns/jakartaee"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="https://jakarta.ee/xml/ns/jakartaee https://jakarta.ee/xml/ns/jakartaee/beans_4_0.xsd"
       version="4.0"/>

<beans xmlns="https://jakarta.ee/xml/ns/jakartaee"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="https://jakarta.ee/xml/ns/jakartaee https://jakarta.ee/xml/ns/jakartaee/beans_4_0.xsd"

version="4.0"/>

Step 6: Open Liberty OIDC Provider & Client Config

Open Liberty can act as both an OIDC Provider (issuing tokens) and OIDC Client (verifying tokens and authenticating users), making it ideal for end-to-end, standards-based authentication in enterprise Java.

restapi-war/src/main/liberty/config/server.xml

<server description="Liberty as OIDC Provider and Client">

  <featureManager>
    <feature>jakartaee-10.0</feature>
    <feature>openidConnectServer-1.0</feature>
    <feature>openidConnectClient-1.0</feature>
    <feature>transportSecurity-1.0</feature>
  </featureManager>

  <variable name="default.http.port" value="9080"/>
  <variable name="default.https.port" value="9443"/>
  <httpEndpoint id="defaultHttpEndpoint" host="*" httpPort="${default.http.port}" httpsPort="${default.https.port}" />

  <dataSource id="PostgresDS" jndiName="jdbc/postgres">
    <jdbcDriver libraryRef="PostgresLib"/>
    <properties serverName="localhost" portNumber="5432" databaseName="postgres" user="postgres" password="postgres"/>
  </dataSource>
  <library id="PostgresLib">
    <fileset dir="/config/resources" includes="postgresql-*.jar"/>
  </library>

  <basicRegistry id="basic" realm="oidcRealm">
    <user name="testuser" password="testpass"/>
  </basicRegistry>
  <oauthProvider id="LocalOAuthProvider" userRegistryRef="basic">
    <localStore>
      <client name="restapi-client" secret="test-secret" displayname="restapi-client" scope="openid profile email">
        <redirect>https://localhost:9443/oidcclient/redirect/restapi-client</redirect>
      </client>
    </localStore>
  </oauthProvider>
  <openidConnectProvider id="LocalOIDCProvider" oauthProviderRef="LocalOAuthProvider" />

  <openidConnectClient
    id="restapi-client"
    clientId="restapi-client"
    clientSecret="test-secret"
    authorizationEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/authorize"
    tokenEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/token"
    userInfoEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/userinfo"
    jwkEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/jwk"
    issuerIdentifier="https://localhost:9443/oidc/endpoint/LocalOIDCProvider"
    signatureAlgorithm="RS256"
    scope="openid profile email"
    redirectToRPHostAndPort="true"
  />

  <keyStore id="defaultKeyStore" password="changeit" location="${server.config.dir}/resources/security/BasicKeyStore.p12" type="PKCS12"/>
</server>

<feature>jakartaee-10.0</feature>

<feature>openidConnectServer-1.0</feature>

<feature>openidConnectClient-1.0</feature>

<feature>transportSecurity-1.0</feature>

</featureManager>

</dataSource>

</library>

</basicRegistry>

<redirect>https://localhost:9443/oidcclient/redirect/restapi-client</redirect>

</client>

</localStore>

</oauthProvider>

<openidConnectClient

id="restapi-client"

clientId="restapi-client"

clientSecret="test-secret"

authorizationEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/authorize"

tokenEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/token"

userInfoEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/userinfo"

jwkEndpointUrl="https://localhost:9443/oidc/endpoint/LocalOIDCProvider/jwk"

issuerIdentifier="https://localhost:9443/oidc/endpoint/LocalOIDCProvider"

signatureAlgorithm="RS256"

scope="openid profile email"

redirectToRPHostAndPort="true"

</server>

Step 7: Generate Self-Signed Certificate

run the below steps to setup a self signed certificate in a keystore

mkdir -p restapi-war/src/main/liberty/config/resources/security

keytool -genkeypair \
  -alias liberty \
  -keyalg RSA \
  -keysize 2048 \
  -validity 365 \
  -keystore restapi-war/src/main/liberty/config/resources/security/BasicKeyStore.p12 \
  -storetype PKCS12 \
  -storepass changeit \
  -dname "CN=localhost, OU=Dev, O=Example, L=City, S=State, C=US"

mkdir -p restapi-war/src/main/liberty/config/resources/security

keytool -genkeypair \

-alias liberty \

-keyalg RSA \

-keysize 2048 \

-validity 365 \

-keystore restapi-war/src/main/liberty/config/resources/security/BasicKeyStore.p12 \

-storetype PKCS12 \

-storepass changeit \

-dname "CN=localhost, OU=Dev, O=Example, L=City, S=State, C=US"

Step 8: Containerfile

FROM icr.io/appcafe/open-liberty:kernel-slim-java21-openj9-ubi

ARG VERSION=1.0
ARG REVISION=SNAPSHOT

LABEL \
  org.opencontainers.image.authors="Your Name" \
  org.opencontainers.image.vendor="Open Liberty" \
  org.opencontainers.image.url="local" \
  org.opencontainers.image.version="$VERSION" \
  org.opencontainers.image.revision="$REVISION" \
  name="restapi" \
  version="$VERSION-$REVISION"

COPY --chown=1001:0 target/liberty/config /config/
COPY --chown=1001:0 target/*.war /config/apps

# Download and setup open liberty features as defined in server.xml
RUN features.sh

# Make the applocation server port accesible from outside the container
EXPOSE 9080

FROM icr.io/appcafe/open-liberty:kernel-slim-java21-openj9-ubi

ARG VERSION=1.0

ARG REVISION=SNAPSHOT

LABEL \

org.opencontainers.image.authors="Your Name" \

org.opencontainers.image.vendor="Open Liberty" \

org.opencontainers.image.url="local" \

org.opencontainers.image.version="$VERSION" \

org.opencontainers.image.revision="$REVISION" \

name="restapi" \

version="$VERSION-$REVISION"

COPY --chown=1001:0 target/liberty/config /config/

COPY --chown=1001:0 target/*.war /config/apps

# Download and setup open liberty features as defined in server.xml

RUN features.sh

# Make the applocation server port accesible from outside the container

EXPOSE 9080

Step 9: Integration Test Module: Maven Plugins for Podman Lifecycle

integration-test/pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>com.example</groupId>
    <artifactId>restapi</artifactId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <artifactId>integration-test</artifactId>
  <dependencies>
    <dependency>
      <groupId>org.junit.jupiter</groupId>
      <artifactId>junit-jupiter</artifactId>
      <version>5.10.0</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.apache.httpcomponents.client5</groupId>
      <artifactId>httpclient5</artifactId>
      <version>5.2.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>

            <!-- Copy WAR file -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
                <version>3.6.0</version>
                <executions>
                    <execution>
                        <id>copy-war</id>
                        <phase>process-resources</phase>
                        <goals>
                            <goal>copy</goal>
                        </goals>
                        <configuration>
                            <artifactItems>
                                <artifactItem>
                                    <groupId>com.example</groupId>
                                    <artifactId>${project.parent.artifactId}-war</artifactId>
                                    <version>${project.version}</version>
                                    <type>war</type>
                                    <outputDirectory>${project.build.directory}</outputDirectory>
                                    <destFileName>${project.parent.artifactId}-war.war</destFileName>
                                </artifactItem>
                            </artifactItems>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <artifactId>maven-resources-plugin</artifactId>
                <version>3.3.1</version>
                <executions>
                    <execution>
                        <id>copy-liberty-config</id>
                        <phase>process-resources</phase>
                        <goals>
                            <goal>copy-resources</goal>
                        </goals>
                        <configuration>
                            <outputDirectory>${project.build.directory}/liberty-config</outputDirectory>
                            <resources>
                                <resource>
                                    <directory>${project.parent.basedir}/${project.parent.artifactId}-war/src/main/liberty/config</directory>
                                    <filtering>false</filtering>
                                </resource>
                            </resources>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

    <plugins>
      <!-- Build the image with Podman -->
      <plugin>
        <groupId>io.github.lexemmens</groupId>
        <artifactId>podman-maven-plugin</artifactId>
        <version>0.4.1</version>
        <executions>
          <execution>
            <id>build-image</id>
            <phase>pre-integration-test</phase>
            <goals>
              <goal>build</goal>
            </goals>
            <configuration>
              <containerfile>${project.parent.basedir}/Containerfile</containerfile>
              <tags>
                <tag>restapi:latest</tag>
              </tags>
              <contextDirectory>${project.parent.basedir}</contextDirectory>
            </configuration>
          </execution>
        </executions>
      </plugin>
      <!-- Start the containers -->
      <plugin>
        <groupId>org.codehaus.mojo</groupId>
        <artifactId>exec-maven-plugin</artifactId>
        <version>3.1.0</version>
        <executions>
          <execution>
            <id>start-podman-containers</id>
            <phase>pre-integration-test</phase>
            <goals>
              <goal>exec</goal>
            </goals>
            <configuration>
              <executable>sh</executable>
              <arguments>
                <argument>-c</argument>
                <argument>
                  <![CDATA[
                  podman run -d --name pgtest -e POSTGRES_PASSWORD=postgres -p 5432:5432 postgres:16 && \
                  podman run -d --name libertytest --link pgtest:db -p 9080:9080 -p 9443:9443 restapi:latest && \
                  sleep 20
                  ]]>
                </argument>
              </arguments>
            </configuration>
          </execution>
          <execution>
            <id>stop-podman-containers</id>
            <phase>post-integration-test</phase>
            <goals>
              <goal>exec</goal>
            </goals>
            <configuration>
              <executable>sh</executable>
              <arguments>
                <argument>-c</argument>
                <argument>
                  <![CDATA[
                  podman stop libertytest pgtest || true && \
                  podman rm libertytest pgtest || true && \
                  podman system prune -f
                  ]]>
                </argument>
              </arguments>
            </configuration>
          </execution>
        </executions>
      </plugin>
      <!-- Run integration tests -->
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-failsafe-plugin</artifactId>
        <version>3.2.5</version>
        <configuration>
          <includes>
            <include>**/*IT.java</include>
          </includes>
        </configuration>
        <executions>
          <execution>
            <goals>
              <goal>integration-test</goal>
              <goal>verify</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
    </plugins>
    <profiles>
      <profile>
        <id>integration-test</id>
        <activation>
          <activeByDefault>false</activeByDefault>
        </activation>
      </profile>
    </profiles>
  </build>
</project>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

<project xmlns="http://maven.apache.org/POM/4.0.0"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0

http://maven.apache.org/xsd/maven-4.0.0.xsd">

<groupId>com.example</groupId>

<artifactId>restapi</artifactId>

<version>1.0-SNAPSHOT</version>

</parent>

<artifactId>integration-test</artifactId>

<groupId>org.junit.jupiter</groupId>

<artifactId>junit-jupiter</artifactId>

</dependency>

<groupId>org.apache.httpcomponents.client5</groupId>

<artifactId>httpclient5</artifactId>

</dependency>

</dependencies>

<build>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-dependency-plugin</artifactId>

<phase>process-resources</phase>

<goals>

</goals>

<groupId>com.example</groupId>

<artifactId>${project.parent.artifactId}-war</artifactId>

<version>${project.version}</version>

<outputDirectory>${project.build.directory}</outputDirectory>

<destFileName>${project.parent.artifactId}-war.war</destFileName>

</artifactItem>

</artifactItems>

</configuration>

</execution>

</executions>

</plugin>

<artifactId>maven-resources-plugin</artifactId>

<id>copy-liberty-config</id>

<phase>process-resources</phase>

<goals>

<goal>copy-resources</goal>

</goals>

<outputDirectory>${project.build.directory}/liberty-config</outputDirectory>

<directory>${project.parent.basedir}/${project.parent.artifactId}-war/src/main/liberty/config</directory>

<filtering>false</filtering>

</resource>

</resources>

</configuration>

</execution>

</executions>

</plugin>

<groupId>io.github.lexemmens</groupId>

<artifactId>podman-maven-plugin</artifactId>

<id>build-image</id>

<phase>pre-integration-test</phase>

<goals>

<goal>build</goal>

</goals>

<containerfile>${project.parent.basedir}/Containerfile</containerfile>

<tags>

<tag>restapi:latest</tag>

</tags>

<contextDirectory>${project.parent.basedir}</contextDirectory>

</configuration>

</execution>

</executions>

</plugin>

<groupId>org.codehaus.mojo</groupId>

<artifactId>exec-maven-plugin</artifactId>

<id>start-podman-containers</id>

<phase>pre-integration-test</phase>

<goals>

</goals>

<![CDATA[

podman run -d --name pgtest -e POSTGRES_PASSWORD=postgres -p 5432:5432 postgres:16 && \

podman run -d --name libertytest --link pgtest:db -p 9080:9080 -p 9443:9443 restapi:latest && \

sleep 20

]]>

</argument>

</arguments>

</configuration>

</execution>

<id>stop-podman-containers</id>

<phase>post-integration-test</phase>

<goals>

</goals>

<![CDATA[

podman stop libertytest pgtest || true && \

podman rm libertytest pgtest || true && \

podman system prune -f

]]>

</argument>

</arguments>

</configuration>

</execution>

</executions>

</plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-failsafe-plugin</artifactId>

</includes>

</configuration>

<goals>

<goal>integration-test</goal>

<goal>verify</goal>

</goals>

</execution>

</executions>

</plugin>

</plugins>

<id>integration-test</id>

<activeByDefault>false</activeByDefault>

</activation>

</profile>

</profiles>

</build>

</project>

Step 10: Comprehensive Unit and Integration Tests

Unit Tests

PersonRepositoryTest.java

package com.example.repository;

import com.example.entity.Person;
import jakarta.persistence.EntityManager;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.mockito.*;

import java.util.Arrays;
import java.util.List;

import static org.junit.jupiter.api.Assertions.*;
import static org.mockito.Mockito.*;

class PersonRepositoryTest {

    @Mock
    EntityManager em;

    @InjectMocks
    PersonRepository repo;

    @BeforeEach
    void setUp() {
        MockitoAnnotations.openMocks(this);
    }

    @Test
    void testFindAllReturnsList() {
        List<Person> expected = Arrays.asList(new Person(1L, "Alice"), new Person(2L, "Bob"));
        when(em.createQuery(anyString(), eq(Person.class)))
            .thenReturn(new TypedQueryStub<>(expected));
        List<Person> result = repo.findAll();
        assertEquals(2, result.size());
        assertEquals("Alice", result.get(0).getName());
    }

    @Test
    void testSavePersistsPerson() {
        Person p = new Person(null, "Charlie");
        doNothing().when(em).persist(p);
        Person result = repo.save(p);
        assertEquals("Charlie", result.getName());
        verify(em).persist(p);
    }

    // Helper stub for TypedQuery
    static class TypedQueryStub<T> extends org.mockito.stubbing.Answer<T> implements jakarta.persistence.TypedQuery<T> {
        private final List<T> data;
        TypedQueryStub(List<T> data) { this.data = data; }
        @Override public List<T> getResultList() { return data; }
        // Implement other methods as needed with UnsupportedOperationException
    }
}

package com.example.repository;

import com.example.entity.Person;

import jakarta.persistence.EntityManager;

import org.junit.jupiter.api.BeforeEach;

import org.junit.jupiter.api.Test;

import org.mockito.*;

import java.util.Arrays;

import java.util.List;

import static org.junit.jupiter.api.Assertions.*;

import static org.mockito.Mockito.*;

class PersonRepositoryTest {

@Mock

EntityManager em;

@InjectMocks

PersonRepository repo;

@BeforeEach

void setUp() {

MockitoAnnotations.openMocks(this);

}

@Test

void testFindAllReturnsList() {

List<Person> expected = Arrays.asList(new Person(1L, "Alice"), new Person(2L, "Bob"));

when(em.createQuery(anyString(), eq(Person.class)))

.thenReturn(new TypedQueryStub<>(expected));

List<Person> result = repo.findAll();

assertEquals(2, result.size());

assertEquals("Alice", result.get(0).getName());

}

@Test

void testSavePersistsPerson() {

Person p = new Person(null, "Charlie");

doNothing().when(em).persist(p);

Person result = repo.save(p);

assertEquals("Charlie", result.getName());

verify(em).persist(p);

}

// Helper stub for TypedQuery

static class TypedQueryStub<T> extends org.mockito.stubbing.Answer<T> implements jakarta.persistence.TypedQuery<T> {

private final List<T> data;

TypedQueryStub(List<T> data) { this.data = data; }

@Override public List<T> getResultList() { return data; }

// Implement other methods as needed with UnsupportedOperationException

}

PersonResourceTest.java

package com.example.resource;

import com.example.entity.Person;
import com.example.repository.PersonRepository;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.mockito.*;

import java.util.List;

import static org.junit.jupiter.api.Assertions.*;
import static org.mockito.Mockito.*;

class PersonResourceTest {

    @Mock
    PersonRepository repo;

    @InjectMocks
    PersonResource resource;

    @BeforeEach
    void setUp() {
        MockitoAnnotations.openMocks(this);
    }

    @Test
    void testGetAllReturnsPersons() {
        when(repo.findAll()).thenReturn(List.of(new Person(1L, "Alice")));
        List<Person> persons = resource.getAll();
        assertEquals(1, persons.size());
        assertEquals("Alice", persons.get(0).getName());
    }

    @Test
    void testGetAllReturnsEmptyList() {
        when(repo.findAll()).thenReturn(List.of());
        List<Person> persons = resource.getAll();
        assertTrue(persons.isEmpty());
    }
}

package com.example.resource;

import com.example.entity.Person;

import com.example.repository.PersonRepository;

import org.junit.jupiter.api.BeforeEach;

import org.junit.jupiter.api.Test;

import org.mockito.*;

import java.util.List;

import static org.junit.jupiter.api.Assertions.*;

import static org.mockito.Mockito.*;

class PersonResourceTest {

@Mock

PersonRepository repo;

@InjectMocks

PersonResource resource;

@BeforeEach

void setUp() {

MockitoAnnotations.openMocks(this);

}

@Test

void testGetAllReturnsPersons() {

when(repo.findAll()).thenReturn(List.of(new Person(1L, "Alice")));

List<Person> persons = resource.getAll();

assertEquals(1, persons.size());

assertEquals("Alice", persons.get(0).getName());

}

@Test

void testGetAllReturnsEmptyList() {

when(repo.findAll()).thenReturn(List.of());

List<Person> persons = resource.getAll();

assertTrue(persons.isEmpty());

}

Integration Tests

What does the integration test do?

Description:
The integration test (PersonResourceIT.java) provides a full end-to-end verification of the secured REST API and OIDC authentication, as it would run in production. It does the following:

Obtains a real OIDC access token from the local Open Liberty OIDC provider using the Resource Owner Password Credentials Grant (with testuser/testpass).
Calls the secured REST API endpoint (/api/persons) with the access token, ensuring the API returns the expected data (Alice and Bob).
Attempts an unauthorized API call (no token), verifying that the API correctly rejects the request with a 401 Unauthorized response.
Handles HTTPS with a self-signed certificate by configuring the HTTP client to trust all certificates (safe for local testing).

This test ensures:

OIDC authentication is fully functional.
The Liberty OIDC provider and client are correctly configured.
The REST API is protected and only accessible with a valid token.
The API returns the correct data from the database.

PersonResourceIT.java

package com.example;

import org.junit.jupiter.api.*;

import java.net.URI;
import java.net.http.*;
import java.util.regex.*;

import static org.junit.jupiter.api.Assertions.*;

@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
class PersonResourceIT {

    static String oidcToken;

    @BeforeAll
    static void obtainOidcToken() throws Exception {
        // Simulate OIDC Resource Owner Password Credentials Grant (for testuser/testpass)
        HttpClient client = HttpClient.newBuilder()
                .sslContext(TestUtils.trustAllSslContext()) // Accept self-signed cert
                .build();

        String body = "grant_type=password&username=testuser&password=testpass&client_id=restapi-client&client_secret=test-secret&scope=openid";
        HttpRequest request = HttpRequest.newBuilder()
                .uri(URI.create("https://localhost:9443/oidc/endpoint/LocalOIDCProvider/token"))
                .header("Content-Type", "application/x-www-form-urlencoded")
                .POST(HttpRequest.BodyPublishers.ofString(body))
                .build();

        HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());
        assertEquals(200, response.statusCode(), "OIDC token endpoint should return 200");
        Pattern p = Pattern.compile("\"access_token\"\\s*:\\s*\"([^\"]+)\"");
        Matcher m = p.matcher(response.body());
        assertTrue(m.find(), "OIDC response should contain access_token");
        oidcToken = m.group(1);
        assertNotNull(oidcToken);
    }

    @Test
    @Order(1)
    void testGetAllPersons() throws Exception {
        HttpClient client = HttpClient.newBuilder()
                .sslContext(TestUtils.trustAllSslContext())
                .build();

        HttpRequest request = HttpRequest.newBuilder()
                .uri(URI.create("https://localhost:9443/api/persons"))
                .header("Authorization", "Bearer " + oidcToken)
                .build();

        HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());
        assertEquals(200, response.statusCode());
        assertTrue(response.body().contains("Alice"));
        assertTrue(response.body().contains("Bob"));
    }

    @Test
    @Order(2)
    void testUnauthorizedAccess() throws Exception {
        HttpClient client = HttpClient.newBuilder()
                .sslContext(TestUtils.trustAllSslContext())
                .build();

        HttpRequest request = HttpRequest.newBuilder()
                .uri(URI.create("https://localhost:9443/api/persons"))
                .build();

        HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());
        assertEquals(401, response.statusCode(), "Should be unauthorized without token");
    }
}

package com.example;

import org.junit.jupiter.api.*;

import java.net.URI;

import java.net.http.*;

import java.util.regex.*;

import static org.junit.jupiter.api.Assertions.*;

@TestMethodOrder(MethodOrderer.OrderAnnotation.class)

class PersonResourceIT {

static String oidcToken;

@BeforeAll

static void obtainOidcToken() throws Exception {

// Simulate OIDC Resource Owner Password Credentials Grant (for testuser/testpass)

HttpClient client = HttpClient.newBuilder()

.sslContext(TestUtils.trustAllSslContext()) // Accept self-signed cert

.build();

String body = "grant_type=password&username=testuser&password=testpass&client_id=restapi-client&client_secret=test-secret&scope=openid";

HttpRequest request = HttpRequest.newBuilder()

.uri(URI.create("https://localhost:9443/oidc/endpoint/LocalOIDCProvider/token"))

.header("Content-Type", "application/x-www-form-urlencoded")

.POST(HttpRequest.BodyPublishers.ofString(body))

.build();

HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());

assertEquals(200, response.statusCode(), "OIDC token endpoint should return 200");

Pattern p = Pattern.compile("\"access_token\"\\s*:\\s*\"([^\"]+)\"");

Matcher m = p.matcher(response.body());

assertTrue(m.find(), "OIDC response should contain access_token");

oidcToken = m.group(1);

assertNotNull(oidcToken);

}

@Test

@Order(1)

void testGetAllPersons() throws Exception {

HttpClient client = HttpClient.newBuilder()

.sslContext(TestUtils.trustAllSslContext())

.build();

HttpRequest request = HttpRequest.newBuilder()

.uri(URI.create("https://localhost:9443/api/persons"))

.header("Authorization", "Bearer " + oidcToken)

.build();

HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());

assertEquals(200, response.statusCode());

assertTrue(response.body().contains("Alice"));

assertTrue(response.body().contains("Bob"));

}

@Test

@Order(2)

void testUnauthorizedAccess() throws Exception {

HttpClient client = HttpClient.newBuilder()

.sslContext(TestUtils.trustAllSslContext())

.build();

HttpRequest request = HttpRequest.newBuilder()

.uri(URI.create("https://localhost:9443/api/persons"))

.build();

HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());

assertEquals(401, response.statusCode(), "Should be unauthorized without token");

}

TestUtils.java

package com.example;

import javax.net.ssl.*;
import java.security.SecureRandom;
import java.security.cert.X509Certificate;

public class TestUtils {
    public static SSLContext trustAllSslContext() {
        try {
            SSLContext ctx = SSLContext.getInstance("TLS");
            ctx.init(null, new TrustManager[]{new X509TrustManager() {
                public void checkClientTrusted(X509Certificate[] xcs, String string) {}
                public void checkServerTrusted(X509Certificate[] xcs, String string) {}
                public X509Certificate[] getAcceptedIssuers() { return new X509Certificate[0]; }
            }}, new SecureRandom());
            return ctx;
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }
}

package com.example;

import javax.net.ssl.*;

import java.security.SecureRandom;

import java.security.cert.X509Certificate;

public class TestUtils {

public static SSLContext trustAllSslContext() {

try {

SSLContext ctx = SSLContext.getInstance("TLS");

ctx.init(null, new TrustManager[]{new X509TrustManager() {

public void checkClientTrusted(X509Certificate[] xcs, String string) {}

public void checkServerTrusted(X509Certificate[] xcs, String string) {}

public X509Certificate[] getAcceptedIssuers() { return new X509Certificate[0]; }

}}, new SecureRandom());

return ctx;

} catch (Exception e) {

throw new RuntimeException(e);

}

Step 11: Build and Run Commands

Default build & unit tests only:

mvn clean install

1 2	mvn clean install

Build, containerize, and run integration tests (all Podman steps controlled by Maven):

mvn clean install -Pintegration-test

1 2	mvn clean install -Pintegration-test

Troubleshooting

Podman plugin errors: Ensure Podman is installed and accessible on your system.
SSL/certificate errors: Integration test client trusts all certificates for local testing.
Container conflicts: If containers already exist, stop and remove them before running tests.
Integration tests fail: Check logs with podman logs libertytest and podman logs pgtest.

References

You now have a fully automated, modern, secure Jakarta EE 10 REST API stack with end-to-end OIDC authentication, containerized and tested with Maven and Podman, and ready for further development or production hardening.

What is OIDC? Why Use It?

OIDC vs. Other Protocols

OIDC Benefits:

Project Structure

Step 1: Create the Project in IntelliJ

Step 2: Parent and Child POMs

Step 3: Production Code

Step 4: Flyway Migration Script

Step 5: persistence.xml & beans.xml

Step 6: Open Liberty OIDC Provider & Client Config

Step 7: Generate Self-Signed Certificate

Step 8: Containerfile

Step 9: Integration Test Module: Maven Plugins for Podman Lifecycle

Step 10: Comprehensive Unit and Integration Tests

Unit Tests

Integration Tests

Step 11: Build and Run Commands

Troubleshooting

References

Leave a Comment Cancel reply
